JEPTC http://www.jeptc.com Wed, 25 Apr 2018 02:26:48 +0000 en-US hourly 1 http://wordpress.org/?v=3.9.22 http://www.jeptc.com/equipments/213.html http://www.jeptc.com/equipments/213.html#comments Thu, 19 Apr 2018 08:05:55 +0000 http://www.jeptc.com/?p=213 QQ截图20180418164137]]> QQ截图20180418164137

]]> http://www.jeptc.com/equipments/213.html/feed 0 Horizontal Garbage Compression http://www.jeptc.com/equipments/solid/190.html http://www.jeptc.com/equipments/solid/190.html#comments Sat, 20 Jan 2018 08:20:34 +0000 http://www.jeptc.com/?p=190 equip_horizontal-garbage-compression01   Features
  • Small space & simple foundation needed; Suitable for different kinds of garbage; Hydraulic drive, working stable, easy and safe operation.
  • Uniquely designed full automatic four points locking method is used for hinge point linking compressor and trash bin.
  • Hydraulic locking method is adopted for trash bin's rear door, preventing sewage and trash from leaking out, thus reduces secondary pollution.
  • All the steel structure has been treated with reliable anti- corrosion and surface spraying, so as to resist trash corrosion against equipment, prolongs equipment service life.
  • Pressure switch controls operation system, all actions transform and interlock automatically according to the set order.
  • Optimized hydraulic system design;
  • Hydraulic pump uses anti-wear low noise vane pump, features low noise.
  Process Flow equip_horizontal-garbage-compression02 Technical Parameters (For Reference)
Model LYSY-0500 LYSY-0501
GW 9.5 t 14 t
Compress Container Volume 0.9 m3 0.9 m3
Weight of Garbage piece 5 t 5 t
System working pressure 25 Mpa 25 Mpa
Working pressure of hydraulic system 16 Mpa 16 Mpa
Power 22 kw 22 kw
Dimension (L×W×H)mm 10000×6355×4200 10000×9500×4200
]]> This kind of horizontal garbage compressor is used to collect scattered life garbage and to compress the garbage into shape, so that the garbage can be shipped by environmental waste vehicles very easily. With easy installation, using less land and very safe, it is widely used in housing estate,hospital,school,Government office and so on.

equip_horizontal-garbage-compression01



Features

  • Small space & simple foundation needed; Suitable for different kinds of garbage; Hydraulic drive, working stable, easy and safe operation.
  • Uniquely designed full automatic four points locking method is used for hinge point linking compressor and trash bin.
  • Hydraulic locking method is adopted for trash bin’s rear door, preventing sewage and trash from leaking out, thus reduces secondary pollution.
  • All the steel structure has been treated with reliable anti- corrosion and surface spraying, so as to resist trash corrosion against equipment, prolongs equipment service life.
  • Pressure switch controls operation system, all actions transform and interlock automatically according to the set order.
  • Optimized hydraulic system design;
  • Hydraulic pump uses anti-wear low noise vane pump, features low noise.



Process Flow

equip_horizontal-garbage-compression02

Technical Parameters (For Reference)

Model LYSY-0500 LYSY-0501
GW 9.5 t 14 t
Compress Container Volume 0.9 m3 0.9 m3
Weight of Garbage piece 5 t 5 t
System working pressure 25 Mpa 25 Mpa
Working pressure of hydraulic system 16 Mpa 16 Mpa
Power 22 kw 22 kw
Dimension (L×W×H)mm 10000×6355×4200 10000×9500×4200
]]> http://www.jeptc.com/equipments/solid/190.html/feed 0 Transportable Garbage Compression http://www.jeptc.com/equipments/solid/180.html http://www.jeptc.com/equipments/solid/180.html#comments Sat, 20 Jan 2018 08:18:19 +0000 http://www.jeptc.com/?p=180 equip_transportable-garbage-compression01   Product introduction
  • Reduced cost to transport your waste and recycling off site.
  • Reduced manual handling saving the cost of labor required to deal with the waste and recycling on site.
  • Safer manual handling reducing lost time due to injury.
  • Ability to handle your specific waste type and handling/loading method.
  • Robust Construction ensures an extended equipment lifespan reducing the need for unforseen upgrades.
  • Increased participation in a recycling program helping to reduce the organisations environmental impact.
  • Increased time available for staff to concentrate on other activities within the business.
  Process Flow equip_transportable-garbage-compression02 Machine Parameter (LYSY-17 for reference)
Item Name LYSY-17
Dimension Peripheral dimensions (L*W*H) 7830*2550*2785 (mm)
Compressor Chamber (L*W*H) 1350*1960*480 (mm)
Weight Machine weight (ton) 6.3
Max. Waste loading capacity(ton) 10.5
Performance Parameter Theoretical compression ability(m³/h)³ ≥52
Maximum thrust of Cylinder head(KN) ≥220
Power(KW) 5.5
Comprehensive processing ability(t/h) ≥36
Volume (m³) ≥17
Maximum thrust of tilting cylinder(KN) ≥150
Wireless remote control device Wireless remote controller
]]> Transportable Compression Equipment for compaction and containment of medium to large volumes of wet and general waste. The transportable compaction head is joined to the compaction container to suit wet or food type wastes.

When the bin is full, the whole unit is transported off site for emptying. The units can be Hand, Bin Lifter or Chute loaded and comply with all Australian Safety Standards. Superior compaction forces provide high payloads to reduce transport costs to landfill.

equip_transportable-garbage-compression01



Product introduction

  • Reduced cost to transport your waste and recycling off site.
  • Reduced manual handling saving the cost of labor required to deal with the waste and recycling on site.
  • Safer manual handling reducing lost time due to injury.
  • Ability to handle your specific waste type and handling/loading method.
  • Robust Construction ensures an extended equipment lifespan reducing the need for unforseen upgrades.
  • Increased participation in a recycling program helping to reduce the organisations environmental impact.
  • Increased time available for staff to concentrate on other activities within the business.

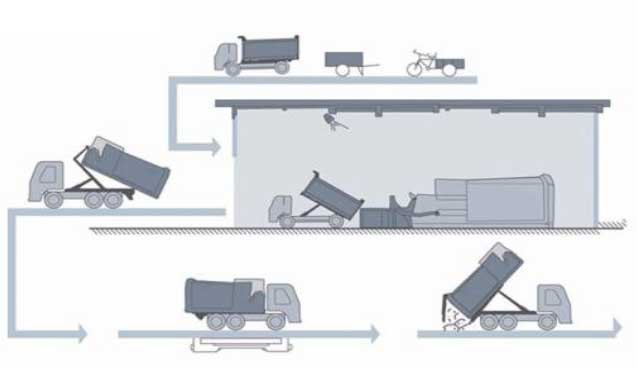

Process Flow

equip_transportable-garbage-compression02

Machine Parameter (LYSY-17 for reference)

Item Name LYSY-17
Dimension Peripheral dimensions (L*W*H) 7830*2550*2785 (mm)
Compressor Chamber (L*W*H) 1350*1960*480 (mm)
Weight Machine weight (ton) 6.3
Max. Waste loading capacity(ton) 10.5
Performance Parameter Theoretical compression ability(m³/h)³ ≥52
Maximum thrust of Cylinder head(KN) ≥220
Power(KW) 5.5
Comprehensive processing ability(t/h) ≥36
Volume (m³) ≥17
Maximum thrust of tilting cylinder(KN) ≥150
Wireless remote control device Wireless remote controller
]]> http://www.jeptc.com/equipments/solid/180.html/feed 0 Guilin Municipal Solid Waste Sorting in Guangxi Province of China http://www.jeptc.com/cases/solid-waste/159.html http://www.jeptc.com/cases/solid-waste/159.html#comments Sat, 23 Dec 2017 04:21:23 +0000 http://www.jeptc.com/?p=159 cases_guilin-municipal-solid-waste-sorting-in-guangxi-china]]> Daily disposal of garbage 1000T/D

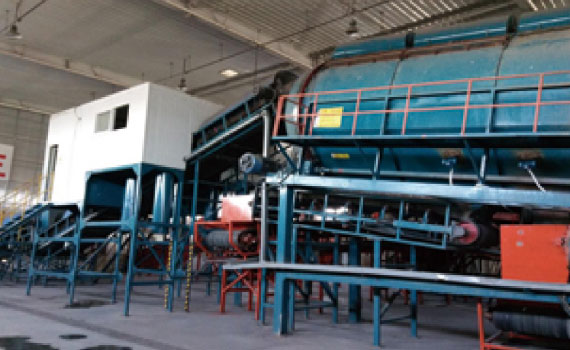

cases_guilin-municipal-solid-waste-sorting-in-guangxi-china

]]> http://www.jeptc.com/cases/solid-waste/159.html/feed 0 Lvliang Municipal Solid Waste Sorting in Shanxi Province of China http://www.jeptc.com/cases/solid-waste/154.html http://www.jeptc.com/cases/solid-waste/154.html#comments Sat, 23 Dec 2017 04:19:22 +0000 http://www.jeptc.com/?p=154 cases_lvliang-municipal-solid-waste-sorting-in-shanxi-china]]> Daily disposal of garbage 500T/D

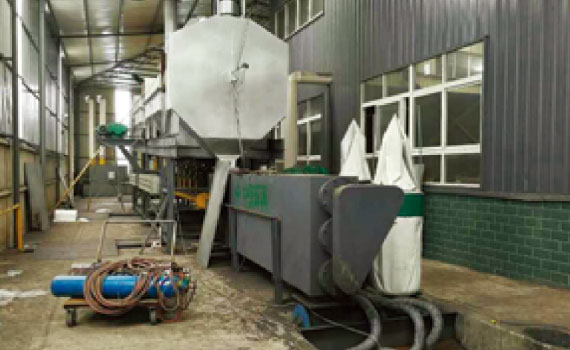

cases_lvliang-municipal-solid-waste-sorting-in-shanxi-china

]]> http://www.jeptc.com/cases/solid-waste/154.html/feed 0 Vladivostok Municipal Solid Waste Sorting and Anaerobic Ferment for Methane in Russia http://www.jeptc.com/cases/solid-waste/152.html http://www.jeptc.com/cases/solid-waste/152.html#comments Sat, 23 Dec 2017 04:10:41 +0000 http://www.jeptc.com/?p=152 cases_vladivostok-municipal-solid-waste-sorting-and-anaerobic-ferment-for-methane-in-russia]]> Daily disposal of garbage 1000T/D

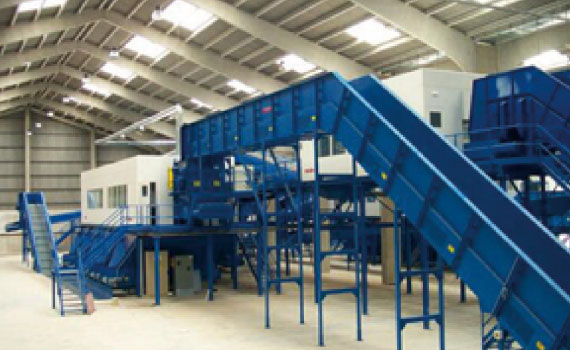

cases_vladivostok-municipal-solid-waste-sorting-and-anaerobic-ferment-for-methane-in-russia

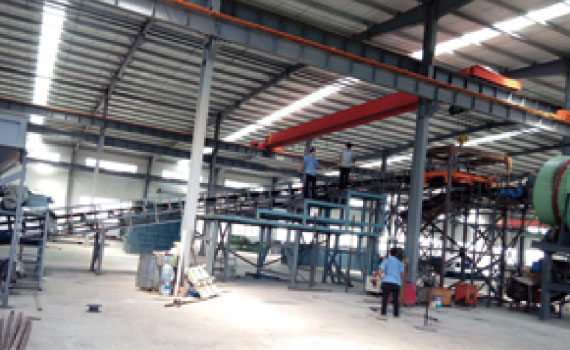

]]> http://www.jeptc.com/cases/solid-waste/152.html/feed 0 Karachi Municipal Solid Waste Sorting and Composting in Pakistan http://www.jeptc.com/cases/solid-waste/149.html http://www.jeptc.com/cases/solid-waste/149.html#comments Sat, 23 Dec 2017 04:05:06 +0000 http://www.jeptc.com/?p=149 cases_karachi-municipal-solid-waste-sorting-and-composting-in-pakistan]]> Daily disposal of garbage 200T/D

cases_karachi-municipal-solid-waste-sorting-and-composting-in-pakistan

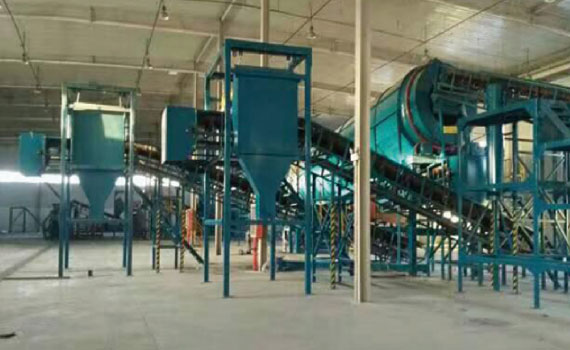

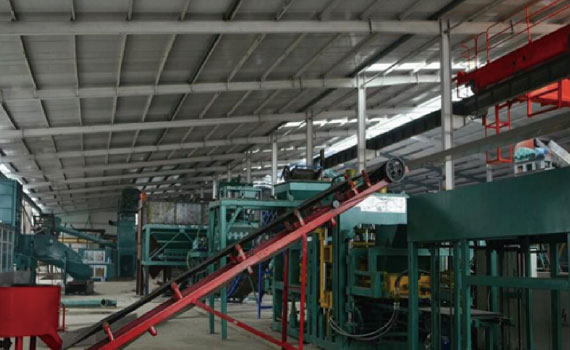

]]> http://www.jeptc.com/cases/solid-waste/149.html/feed 0 Vama Municipal Solid Waste Sorting in Bulgaria http://www.jeptc.com/cases/solid-waste/147.html http://www.jeptc.com/cases/solid-waste/147.html#comments Sat, 23 Dec 2017 04:01:01 +0000 http://www.jeptc.com/?p=147 cases_vama-municipal-solid-waste-sorting-in-bulgaria-01 cases_vama-municipal-solid-waste-sorting-in-bulgaria-02]]> Daily disposal of garbage 300T/D

cases_vama-municipal-solid-waste-sorting-in-bulgaria-01

cases_vama-municipal-solid-waste-sorting-in-bulgaria-02

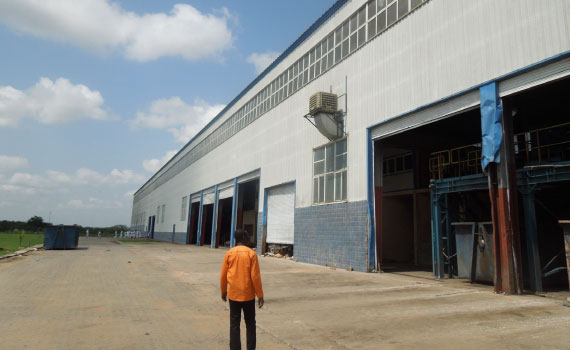

]]> http://www.jeptc.com/cases/solid-waste/147.html/feed 0 Accra Compost and Recyling Plant in Ghana http://www.jeptc.com/cases/solid-waste/136.html http://www.jeptc.com/cases/solid-waste/136.html#comments Sat, 23 Dec 2017 03:58:27 +0000 http://www.jeptc.com/?p=136 cases_accra-compost-and-recyling-plant-in-ghana-01 cases_accra-compost-and-recyling-plant-in-ghana-02 cases_accra-compost-and-recyling-plant-in-ghana-03 cases_accra-compost-and-recyling-plant-in-ghana-04]]> Daily disposal of garbage 400T/D

cases_accra-compost-and-recyling-plant-in-ghana-01

cases_accra-compost-and-recyling-plant-in-ghana-02

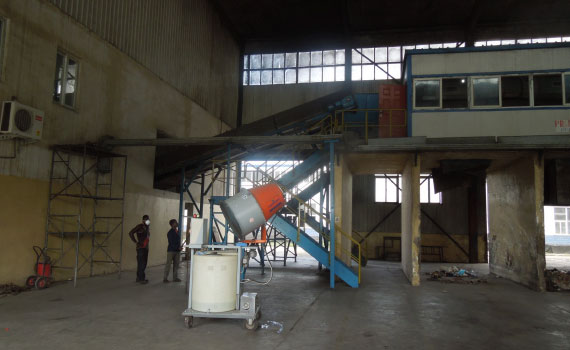

cases_accra-compost-and-recyling-plant-in-ghana-03

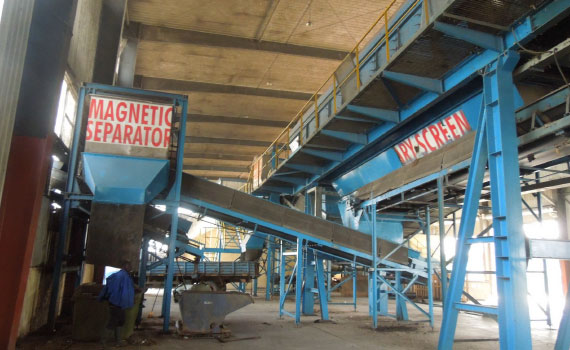

cases_accra-compost-and-recyling-plant-in-ghana-04

]]> http://www.jeptc.com/cases/solid-waste/136.html/feed 0 Tangshan Xinrui Electronic Waste Water Treatment Engineering http://www.jeptc.com/cases/water-waste/116.html http://www.jeptc.com/cases/water-waste/116.html#comments Sat, 23 Sep 2017 12:47:36 +0000 http://www.jeptc.com/?p=116 cases_tangshanxinrui_01 cases_tangshanxinrui_02]]> The Project is one of the main projects newly built in Hebei Province in 2015, jointly invested by China and Korea, with the total investment to be RMB one billion.

The Project is located in Guye District in Tangshan, in which hyperfine flexible printed circuit board (FPCB) and rigid-flexible circuit board are produced.

The Project belongs to heavy metal waste water, with water volume of 400 m3/d, in which the process of “chemical treatment +A/O+MBR +catalytic oxidation” is adopted, and outflow meets Grade 1 A in “Discharge Standard of Pollutants for Municipal Wastewater Treatment Plant” (GB 18918-2002).

The Project is EPC contracting project, with the total construction period (design, supply, construction and commissioning) of 115 calendar days.

cases_tangshanxinrui_01

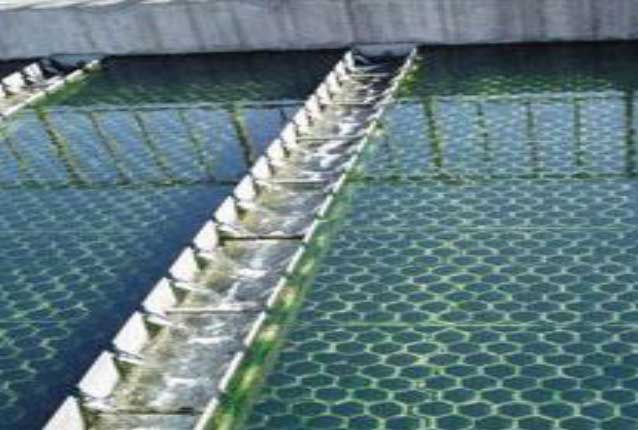

cases_tangshanxinrui_02

]]> http://www.jeptc.com/cases/water-waste/116.html/feed 0 Sewage Treatment Engineering for Key Villages of Tangxian Beautiful Village Construction http://www.jeptc.com/cases/water-waste/111.html http://www.jeptc.com/cases/water-waste/111.html#comments Sat, 23 Sep 2017 12:39:51 +0000 http://www.jeptc.com/?p=111 cases_tangxianvillage-_01]]> The Project is invested by Tangxian Xinpeng Urban and Rural Construction Co., Ltd.

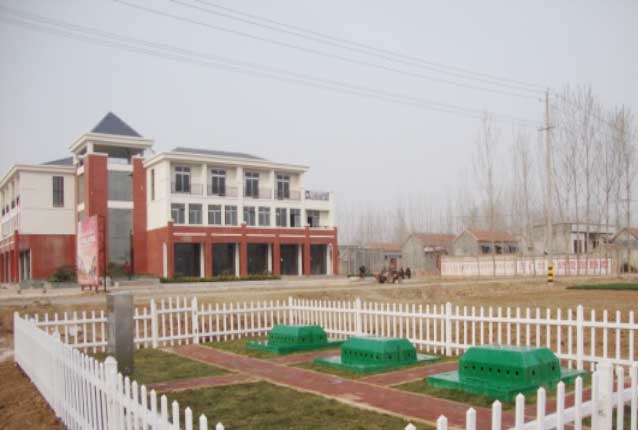

The auxiliary projects of “Beautiful Village” construction project of Hebei Province cover five key villages, i.e. Yeli, Gegong, Xishenggou, Yujiazhai and Caozhuangtai in Tangxian County, Baoding City.

The process of “AO + artificial wetland” is adopted in 5 villages. The outflow water meets Grade 1 A in “Discharge Standard of Pollutants for Municipal Wastewater Treatment Plant” (GB 18918-2002).

The Project is EPC contracting projects, with the total construction period (design, supply, construction and commissioning) of 90 calendar days.

cases_tangxianvillage-_01

]]> http://www.jeptc.com/cases/water-waste/111.html/feed 0 Watercourse Sewage Outlet Treatment Engineering in Nancai Town http://www.jeptc.com/cases/water-waste/104.html http://www.jeptc.com/cases/water-waste/104.html#comments Sat, 23 Sep 2017 12:12:20 +0000 http://www.jeptc.com/?p=104 cases_nancaitown_01 cases_nancaitown_02  ]]> The treatment scale of the Project is 2,000m3 of drainage per day. The treatment station, operating in 24h, is buried, with sludge dewatering room, ultrafiltration equipment room and guard room, etc. constructed on the ground. All access holes are 200mm out of the ground. Both water level in water tank and equipment operation state are indicated on the control cabinet in equipment room.

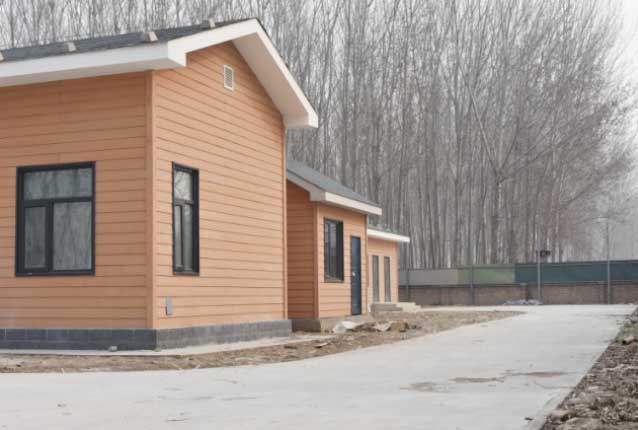

The Project, located in the sewage outlet in Hebei Town, Liuyan Hangou, Nancai Town, Shunyi District, Beijing, is under the general contracting of Beijing Xindayu Water Resources Construction Engineering Co., Ltd.

The Project adopts the treatment process of “hydrolization + A/O + UF ultrafiltration”. The outflow water meets B standard in “Integrated Discharge Standard of Water Pollutants” (DB11/307-2013).

The Project is equipment EPC contracting project, with the total construction period (supply, construction and commissioning) of 120 calendar days.

cases_nancaitown_01

cases_nancaitown_02



]]> http://www.jeptc.com/cases/water-waste/104.html/feed 0
